SDI Diagnostics Astra 300 Multifunction Spirometer, 29-5300

The Latest Innovation from SDI Touch Screen Spirometry

The Astra300™ puts the sophistication and simplicity of a touch screen in the palm of your hand. Enter data, test patients, and send and print reports with precision and ease. Easily report your choice of up to 40 spirometry test parameters, all measured accurately and precisely.

Astra300™ Puts Sophisticated Simplicity in the Palm of Your Hand.

The Touchscreen Makes It Easy. SDI Makes It Accurate.
Easily report your choice of up to 40 spirometry test parameters, all measured accurately and precisely with the highly sophisticated Astra300 Spirometer. Using the bright and sensitive touchscreen, you can easily access multifunctional capabilities and view both graphic and tabular data. Entering patient data, patient testing and reporting couldn't be easier. Exporting test data to a printer or PC via USB is quickly accomplished with just a few stylus taps on the touchscreen. A Bluetooth-to-PC module is available as as option for truly wireless communication.

AccuFlo™ Digital Turbine

The AccuFlo™ bidirectional turbine with optoelectronic rotary sensor is easily detached for cleaning. Sapphire bearings ensure optimal performance for the life of the turbine. AccuFlo has a unique flow trigger algorithm that allows tidal breathing prior to the patient expiratory effort making the spirometry test easier for the patient and insuring quality test results.

Features:
Bright, sensitive touchscreen
Multifunctional capabilities
View both graphic and tabular data
Easy to use
Export test data to a printer or PC via USB
NIOSH and SSA Guidelines Compliant
Optional Bluetooth-to-PC

Technical Specifications:

Forced Parameters Measured

Forced vital capacity: FVC, FEV.5, FEV1, FEV3, FEV6, FEV1/FVC, FEV1/FEV6, FEV.5/FVC, FEV3/FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF 75-85, FET, FEV1/FEV.5, FEV1/PEF, MIF50, FIVC, FIV1, FIV1/FVC, FEV1/FIV1,PIF, MTT, PEV/PIF, Lung Age
MVV: Br/min

Relaxed Parameters Measured

VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt
Maneuvers per patient: 5 total; best test and last test highlighted
Interpretation: Selectable – Kory, Miller, ATS, NLHEP (Ferguson)
Predicted sets: Selectable – 14 Total
Ethnic correction: Selectable – % Actual, Caucasian, Hispanic, AfroAmerican
Language: Selectable – English or Spanish

Measurement Scale (BTPS)

Flow range: 0–16 L/sec
Volume: 0–10 L
Measurement method: Infrared Interruption via Digital Turbine
Dynamic flow resistance: <1.5 cm H20/L/sec @ 14 L/sec

Precision of Measurements (BTPS)

At highest volume: +/- 3% or 50 mL
At highest flow: +/- 5% or 150 mL
Time related precision: .5%
Volume resolution: <6 mL
Sampling frequency: 50 Hz

Hardware Specifications

Storage capacity: 1000+ studies
Keyboard: Alphanumeric LCD touchscreen
Communication: USB to printer and PC, RS232 Optional: Bluetooth to PC
Dimensions: 5.75" x 3.25" x 4.0"
Power supply: 2 x 1.5 DC Alkaline or NiMH batteries
Weight: 9 oz (250 g)
What is in the box?

Astra 300 Touch Screen Spirometer
Software

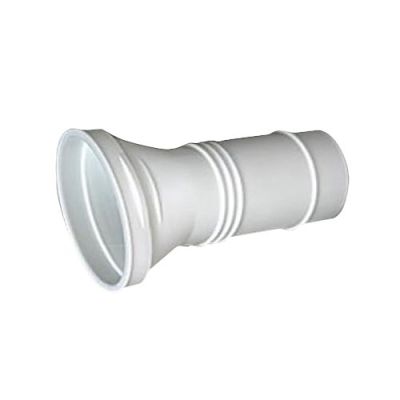

10 AstraGuard Bacterial/Viral Filters
10 Noseclips
1 Quick Reference Card
1 Cable USB (PC Link)
1 Cable USB (External Printer Link)
2 AA 1.5 V Alkaline Battery
Carrying Case
1 Turbine Transducer
Ordering:
29-5300: Astra 300 Multifunction Spirometer
29-5300-050: Astra 300 Spirometer Kit (Astra 300, 50 AstraGuard Filters, 50 Kushion Klip noseclips)
29-5301: Astra 300 Spirometer Kit (Astra 300, Calibration Syringe)
29-5301-050: Astra 300 Spirometer Kit (Astra 300, Calibration Syringe, 50 AstraGuard Filters, 50 Kushion Klip noseclips)
29-5302: Astra 300 Spirometer Kit (Astra 300 with printer)
29-5302-050: Astra 300 Spirometer Kit (Astra 300, Printer, 50 AstraGuard filters, 50 Kushion Klip noseclips)
29-5302S: Astra 300 Spirometer Kit (Astra 300, Calibration Syringe, Printer)
29-5302S-050: Astra 300 Spirometer Kit (Astra 300, Calibration Syringe, Printer, 50 AstraGuard Filters, 50 Kushion Klip noseclips)
