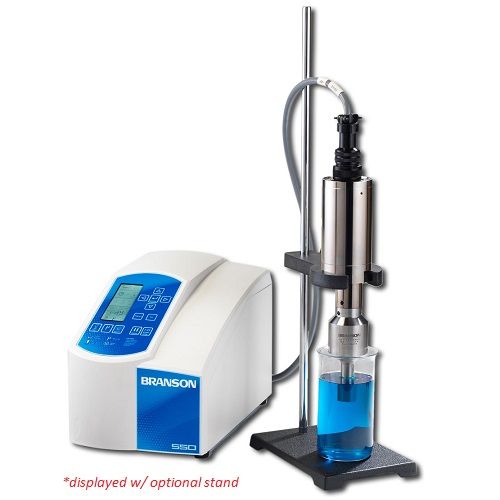

Branson SFX550 Sonifier with 3/4" Horn - 550 watts, 20 kHz, 240V. The 550 model easily handles larger samples with up to 550 watts output power. Features advanced control modes including time and energy mode with energy pulsing. Branson offers industry-exclusive adaptive temperature control when paired with optional temperature probe. Includes converter, cable, and 3/4" horn.

The SFX250 and SFX550 are part of the new SFX Series of Sonifiers from Branson, designed to bring the industry's most advanced sample-processing capabilities to your laboratory. The SFX Series brings a new level of ease, precision, and repeatability with advanced energy and temperature control modes, process monitoring capabilities, and programming features.

Sonifier SFX250 Model

• 250 watts of power at 20 kHz
• Processes samples from 0.2 up to 500 mL
• Includes power supply, converter and 1/2" disruptor horn

Sonifier SFX550 Model

• 550 watts of power at 20 kHz for high-volume processing
• Processes samples from 0.2 to 1000 mL
• Includes power supply, converter, and choice of 1/2" or 3/4" disruptor horn

Sonifier SFX250 and SFX550 Features

• Advanced energy control mode delivers precise energy input in continuous or pulse modes.
• True temperature control manages sample temperature within user-specified limits (requires separate temperature probe).
• Control modes include time, temperature, and energy.
• Continuous or pulsed ultrasonics.
• High-efficiency, stand-mountable converter requires no internal cooling.
• Scrollable, multifunction screen with pushbuttons.
• In-process feedback displays experimental progress together with key variables such as power level, energy usage, and sample temperature.
• Microtip mode limits amplitude to 70% to extend tool life.
• Amplitude control range from 10 to 100%.
• Powerful 20 kHz ultrasonics.
• Up to 20 stored programs. Programmable parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage.

All SFX Series Sonifiers feature a digital, intuitive interface flanked by easy-to-use pushbuttons. The screen and
buttons provide one-touch access to all control parameters and modes of operation.

Advanced Control Modes. In Energy Mode, the SFX Series power supply manages the processing cycle to deliver a precise, user-determined input of ultrasonic energy (measured in joules), either continuously or pulsed. The SFX Series automatically compensates for any variability, extending or shortening the cycle as needed to deliver the precise energy output.

True Temperature Control. (Requires separate temperature probe.) With true temperature control, the SFX Series power supply maintains the temperature of the sample to within a user-specified range, automatically adjusting the ultrasonic pulse length to regulate the temperature rise and prevent overheating.

Sample-Processing Programs. For assured repeatability and precision on a greater scale, the SFX Series enables users to create and store up to 20 sample-processing programs. Program parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time, and total on-time/energy; or amplitude as a percentage.

Process Monitoring. In operation, Sonifier SFX Series monitors ongoing processes on a scrollable, digital screen, providing continuous updates of key variables including power level, energy usage, sample temperature, and experiment progress.

Dimensions:
12.5" (318 mm) L x 7.5" (191 mm) W 14 lbs.

Ordering Info:
SFX250 with 1/2" Horn 101-063-965R 120 V 250 watts
SFX250 with 1/2" Horn 101-063-966R 240 V CE
SFX550 with 1/2" Horn 101-063-969R 120 V 550 watts
SFX550 with 1/2" Horn 101-063-971R 240 V CE
SFX550 with 3/4" Horn 101-063-968R 120 V 550 watts
SFX550 with 3/4" Horn 101-063-970R 240 V CE

Includes: 550 watt power supply, 20 kHz converter, 1/2" or 3/4" disruptor horn, power cord, manual, wrench set
