Details

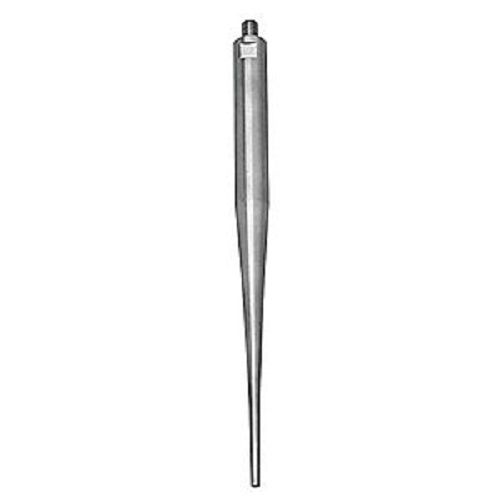

Branson Ultrasonics Tapered 3/16" dia. microtip for use with 1/2" tapped horn 101-148-069 Microtip probes are available in tapered and stepped configurations and are designed to process samples contained in small diameter vessels at extremely high intensity (refer to chart for recommended volumes). Tapered microtips screw into standard 1/2" step horns with tapped ends. The double stepped microtip consists of a coupler and a stepped tip and screws directly into the converter. It has lower amplitude than the tapered tip, but is capable of reaching into small diameter vessels of greater depth and can process solutions down to 0.1 mL. WARNING: Because of their high amplitude, microtips are highly stressed and can break if operated in air or at an amplitude setting greater than 70% on all Sonifier models. Tip Diameter: 3/16" (5 mm) Intensity: Very high Ampl. Range*: 59.5-302 Volume (Liquid): 5 - 20 mL Part Number: 101-148-069

Branson Ultrasonics Tapered 3/16 inch dia. Microtip 101-148-069
