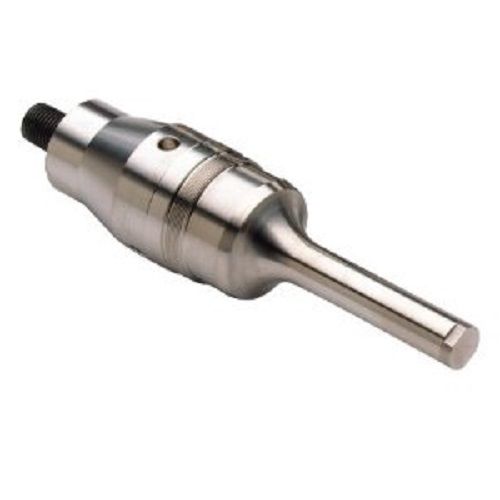

Branson Ultrasonics Exponential horn 1/2" dia Solid (not usable with accessory chambers) 101-147-041 Horns (probes) transmit ultrasonic energy into a solution. The dimensions of the horn and the output control setting determine the amount of amplitude (tip movement) and degree of ultrasonic activity in the liquid. Generally, the smaller the tip diameter, the higher the amplitude. Larger tip diameters have less amplitude but can accommodate larger volumes. All Sonifier horns and tips are fabricated from titanium. Please note the charted amplitude ratings and liquid volumes when selecting horns. A step horn with a threaded body enables the attachment of various screw-on accessories, such as a continuous flow cell. Tapped horn ends enable attachment of microtips. Tapped horns are supplied with removable flat tips. NOTE: High gain horns can't be used with screw-on accessories as they provide higher amplitude. Exponential horns have lower tip amplitude but can withstand higher tip loading. Best suited for applications requiring the compressing of solids such as powders and tissue.

Branson Ultrasonics Exponential horn 1/2 inch dia Solid 101-147-041
