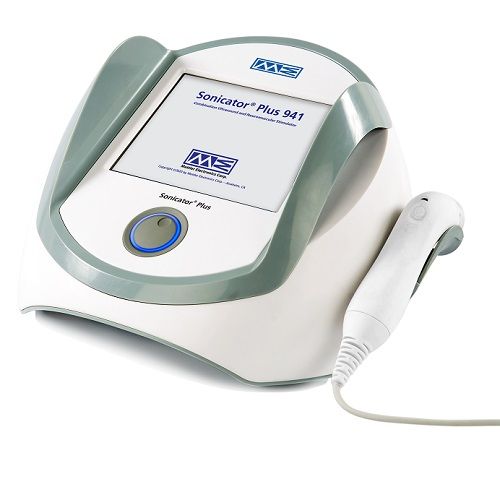

Mettler Sonicator Plus ME941 4 Channel Combo Unit Sonicator® Plus 941 The Sonicator® Plus 941 is a 4-channel combination stimulator with ultrasound. It features a vivid color touch screen for quick and easy treatment setups. The 921 offers 6 unique waveforms; Interferential (IF-4), Premodulated (IF-2), EMS, Russian, TENS and High Voltage (HV). The easy-to-use software interface allows for quick set up, precision and clinical accuracy. There are individual control knobs for each stimulation channel and ultrasound that sets treatment intensity with precision and accuracy. The clinician can change any treatment parameter both before and during a treatment. The Sonicator Plus 941 offers a complete anatomical library with electrode placement and treatment recommendations. All treatment recommendations are written by clinicians. There is space for the clinician to store their own treatment protocols along with a description for each. This is a tremendous combination device for any practice. With 6 clinical waveforms and 1 and 3 MHz frequency ultrasound, the 941 is one of the most advanced units on the market. Features and Benefits for Both Units Six Waveforms Available Interferential (IF-4), Premodulated (IF-2), EMS, Russian, TENS and High Voltage (HV) Intensity Control Knobs Intensity for ultrasound and electrical stimulation is adjusted using control knobs for precise and quick adjustment of treatment intensity. Anatomical Treatment Protocols Choose the body area and condition to be treated from the Human Body Diagram. Therapy parameters are pre-programmed for various conditions. All the pre-programmed parameters can be modified to suit your particular needs. User Defined Memory You can save treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients. 8-Inch TFT Color Touch Screen The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than used in previous models. Multi-Frequency Treatment Applicators (1 MHz and 3 MHz) for ultrasound The applicator offers both 1 MHz and 3 MHz frequencies. General Specifications:
Ultrasound Specifications:
Waveform Specifications: IFC (interferential)Waveform: Sine Wave Pulse Width: 100 µS Pulse Rate: 5,000 Hz Sweep Freq: Selectable 1 -10, 80-150 and 1- 150Hz Scan Period : Off, 40% and 100% Scan Output Power : 0 to 50 mA Pre-modWaveform: Premodulated IFC Pulse Rate: 5,000 Hz Sweep Freq: Selectable 1 -10, 80-150 and 1- 150 Hz Total Sweep Time : 15 Sec. Cycle Time : 5/5 and Continuous Output Power : 0 to 50 mA RussianWaveform: Step Sine Wave Duty Cycle: Selectable 10, 20, 30, 40, 50 Burst Rate: Selectable from 20 to 100 Hz Ramp Time : 0.5, 1, 2, and 5 sec. Cycle Time : 5/5, 10/10, 10/20, 4/12, 10/30, 10/50, and Continuous Output Power : 0 to 100 mA TENSWaveform: Asymmetrical Biphasic Square Wave Pulse Width: Selectable from 10 µS to 250 µS Pulse Rate: Selectable from 1Hz to 150 Hz Burst Mode : Each Burst to be a train of 7 pulses at 100 Hz. Modulation Mode : Pulse Frequency is varied automatically in a cyclic pattern: After 1 second at the set pulse frequency, the frequency decreases over a period of 4 seconds to 40% less, holds at this lower frequency for 1 second, then increases over a 4 second period to the set frequency. The total cycle is 10 seconds, within 20%. Output Power : 0 to 90 mA EMSWaveform: Asymmetrical Biphasic Square Wave Pulse Width: Selectable from 10 µS to 250 µS Pulse Rate: Selectable from 1 Hz to 150 Hz Ramp time : adjustable from 1-6 seconds Contraction Time : adjustable from 1-30 seconds Relaxation Time: adjustable from 1-30 seconds Output Power : 0 to 90 mA High VoltageWaveform: Twin pulses Pulse Width: 20 µS Pulse Rate: Selectable from 1pps to 120 pps Ramp: 0.5, 1, 2, and 5 s Cycle Timse: 5/5, 10/10, 10/20, 4/12, 10/30, 10/50, and Continuous Polarity: +/- Output Power : 0 to 500V |
Warranty | 2 Years Manufacturers Warranty |
---|
