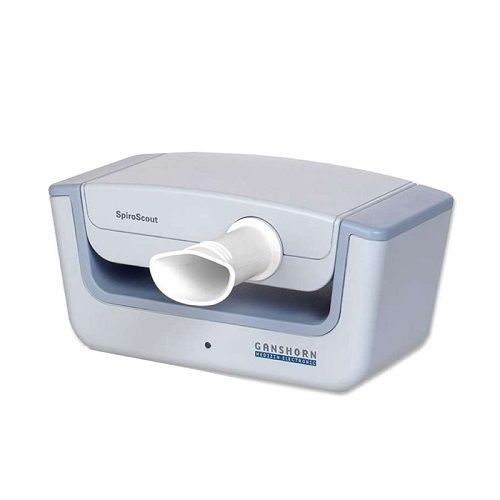

Schiller SpiroScout PC Based Ultrasound Spirometry System 1.500000

The SpiroScout SP incorporates the latest ultrasound technology and can be used in combination with SCHILLER ECG devices.

This new concept offers many benefits, as it simplifies the handling of the measurements and the data management for both ECG and Spirometry recordings. There are no moving parts, no filters to change, no screens to catch sputum and no disposables to calibrate.

The ultrasonic flow measurement is independent of gas composition, pressure and humidity. Therefore errors connected with these variables are eliminated. In combination with the disposable ScoutTube sensors you have a safe, efficient solution with full contamination control.

FEATURES

• Ultrasonic flow sensor to measure the flow of air into and out of the patient’s lungs
• Works in combination with CARDIOVIT AT-102 (only with SCM), CARDIOVIT AT-102 plus, CARDIOVIT AT-10 plus, CARDIOVIT MS-2010 and CARDIOVIT MS-2015
• Sensor is not influenced by humidity, barometric pressure and contamination
• Extremely high accuracy for low flows
• No volume calibration and no warm-up time necessary
• No cleaning and maintenance needed
• Hygienic ScoutTube sensors for single patient use

What does it come with?

• SpiroScout Base
• SpiroScout Sensor
• Spiral Cable Sensor to Base Station
• USB Cable
• 10 Nose Clip Standard
• 50 ScoutTube Mouthpieces
• 1 year manufacturers warranty

TECHNICAL DATA

• Flow-Measurement
• Principle Ultrasound transit time
• Range 0 to ± 20 l/s
• Accuracy ± 2%
• Resolution 0.001 l/s

Volume-Measurement
Measurement Principle Digital Integration
Range Not limited
Accuracy ± 2%
Resolution 1 mL

Dimensions
Device 18 cm x 9 cm x 9 cm (W x H x D)
Weight 1000 g (ScoutSensor 185 g, base station 730 g, cable 85 g)
Breathing Insert Spiroscout 0.002 kPa/l/s
Breathing resistance 18 cm³ (pediatric inlet available) Dead space, complete
Material Polyethylene

Computer Interface
Data transfer to PC USB 2.0
USB connection Connector A - connector B, double shielded, 2x AWG24

Power Supply
StandardPowered via USB 2.0 - Voltage 4.5 to 5.25 V DC - Power Supply: 500 mA
Option External AC Adapter

Standards
Quality Management ISO 13485
FDA 510(k) market clearance
MDD 93/42/ECC CE Marked
Electrical safety EN 60601-1 (Third Edition)
