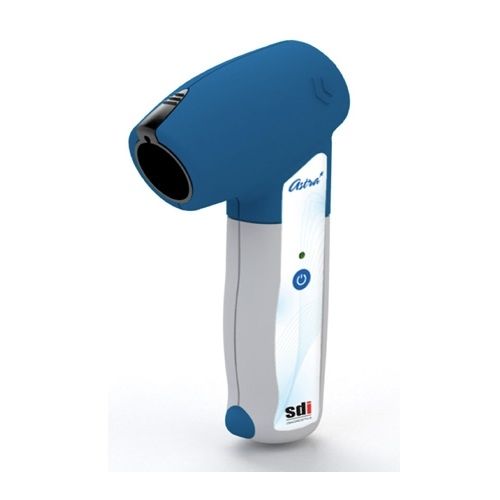

SDI Diagnostics Astra BT Wireless Spirometer 29-5500
Astra BTThe latest innovation from SDI Diagnostics!
Astra BT™ Spirometer is the solution for those searching for a fully-integrated AND wireless spirometer. Complete package includes our AstraPro software.
Astra BT™ Features
- Simplicity With Comprehensive Spirometry.
- Powered by two AAA batteries
- Ergonomic handle includes:
- Visual connectivity indicator
- Integrated temperature sensor
- Lanyard
- Power save mode
- Transmit and share data and results with your EMR system
- Meets ATS standards
- NIOSH (National Institute for Occupational Safety and Health) Compliant
- Simultaneous F/V and V/T graphs
AccuFlo™ Digital Turbine
The AccuFlo™ bidirectional turbine with optoelectronic rotary sensor is easily detached for cleaning. Sapphire bearings ensure optimal performance for the life of the turbine. AccuFlo has a unique flow trigger algorithm that allows tidal breathing prior to the patient expiratory effort making the spirometry test easier for the patient and insuring quality test results.
AstraPro™ Software
Choose either Pre- and Post-bronchodilator and bronchial challenge testing or use the incentive program with your pediatric patients or adults. The Astra BT communicates with AstraPro wirelessly via Bluetooth.
TECHNICAL SPECIFICATIONS Forced Parameters Measured Forced vital capacity: FVC, FEV1, FEV1/FVC, PEF, FEF50%, FEV6, FEV1/FEC, PEF, FEF25-75%, FEV6, FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV3, FEV0.5, FEV0.5/FVC, FEV3/FVC, FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEV25%, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FVC, PIF, MTT, MVV Ind, Lung age MVV: MVV, Br./min Bronchoconstriction: FVC, FEV1, PEF, FEF25-75%, PDX Relaxed Parameters Measured VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt Maneuvers per patient: 8 Total; Best test and last test highlighted Interpretation: Selectable – Kory, Miller, ATS, NLHEP (Ferguson) Predicted sets: Selectable – 20 Total Ethnic correction: Selectable – % Actual, Caucasian, Hispanic, African-American Language: Selectable – English, Spanish or French Measurement Scale (BTPS) Flow range 0–16 L/sec Volume 0–10 L Measurement method: Infrared Interruption via Digital Turbine Dynamic flow resistance: <1.5 cm H20/L/sec @ 14 L/sec Measurement Precision (BTPS) At highest volume: +/- 3% or 50 ml At highest flow: +/- 5% or 150 ml Time related precision: 0.5% Volume resolution: <6 ml Sampling frequency: 100 Hz
What does it come with?
Astra BT Wireless Spirometer 10 pcs. Mouthpieces 10 pcs. Nose Clips Soft Carrying Case AstraPro EMR Compatible Software 2 AAA Batteries 1 Lanyard User Manual
|
