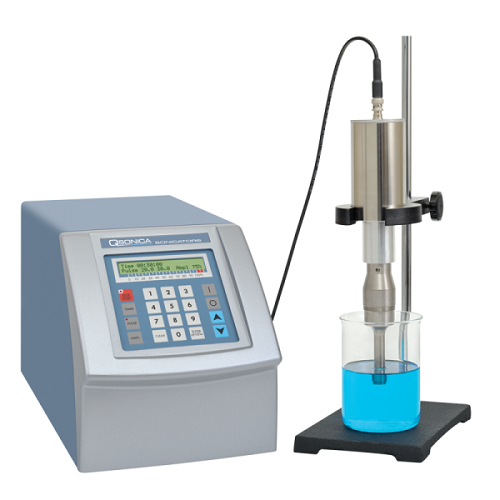

Qsonica Q500 Sonicator Ultrasonic Homogenizer w/ Probe 500W

Please note: the stand is sold separately.

The Q500 is a powerful ultrasonic processor featuring programmable operation and a digital display of operating parameters. Popular applications include nanoparticle dispersion, creating emulsions, cell lysis and homogenization.

Adjustable pulse On and Off times can be programmed from 1 second to 1 minute. Total programming has a maximum setting of 10 hours. A wide variety of probes and accessories are available to handle virtually any application.

Part #Q500 includes a standard ½” diameter probe with replaceable tip (#4220). A variety of probe/horn options are available and the system can be purchased without the standard probe by selecting #Q500A.

Features:
Programmable operation
Set time and amplitude for hands free operation

Pulse mode
Prevent heat buildup in temperature sensitive samples

Digital amplitude / intensity control
Output intensity can be set from 20-100%

Elapsed time indicator
Displays duration of sonication

Display of wattage and joules
Real-time energy monitoring

Overload protection
Prevents damage to circuitry if a fault occurs

RoHS compliant
Uses lead free components

Technical Specifications:

• Power Rating: 500 watts
• Frequency: 20 kHz
• Programmable Timer: 10 hours
• Adjustable Pulse On/Off: 1 second to 1 minute
• Dimensions: 8″ W x 15.25″ L x 8.5″ H
• Voltage: 110V, 50/60Hz

What does it come with?

• Generator
• Converter
• 1/2” diameter probe
• Power cable
• Converter cable
• Wrench set
