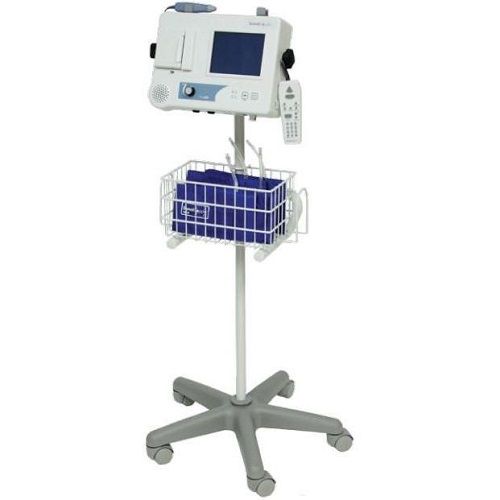

Summit Doppler Vista AVS
(Advanced ABI/Vascular System includes: on-screen guide, PVR, 8MHz Doppler, PPG, auto-cluff inflation/deflation, individual site mode, PC software, stand, and 9 cuffs) L500VA
Vista Series Dopplers offer more modalities for quickly obtaining the Ankle Brachial Index (ABI) and aiding in the detection of Peripheral Arterial Disease (P.A.D.). The Vista AVS system performs segmental exams, to help locate blockages or narrowing in the vessels after initial single-level ABI testing.
The Vista systems feature:
• Fast, automatic cuff inflation/deflation and highly accurate ABI calculations • Graphic waveform display with easy to follow test sequences • Sensitive bi-directional 8 MHz Doppler probe for surface vessels or optional 5 MHz probe for deeper vessels (Bi-directional probes are capable of obtaining waveforms) • Obtains dual-ankle pressures at Posterior Tibial (PT) and Dorsalis Pedis (DP) arteries • Pulse volume recording (PVR) can be used to obtain peripheral arterial waveforms with blood pressure cuffs • PPG probe standard for performing TBI exams on patients with non-compressible arteries as well as at the toe site for segmental studies • Software for reporting, annotating, storage, printing, and interfacing with EMR (optional feature on the Vista ABI)
Vista ABI System: Performs single-level ABI exams with the option to add PPG probe for TBI and comes with 4 blood pressure cuffs ((2) 10 cm and (2) 12 cm). Vista AVS System: Next-level system performs a total of four exam types, including single-level ABI, seated ABI, TBI, and Segmental exams and comes with 9 blood pressure cuffs ((2) 10 cm, (4) 12 cm, (2) 17 cm, and (1) digital cuff).
Display Screen
Size 5.7 in., ¼ VGA (320 x 240 dot) Backlight LED backlight Type Transflective monochrome
Device Dimensions
Width 12 in. Depth 3.6 in. Height 10 in. Weight 4.75 lbs Stand Height 47 in.
Electrical Power
Type Medical grade supply Rated Mains Supply Voltage 100–240 VAC, 50–60 Hz, 1.2A Output +7V, 5A
Battery
Type 6-cell NiMH pack Rating 7.2V, 2000 mAH Replacement Part Number BAT0004 Battery Life Three hours continuous use or minimum of 12 ABI Exams Replacement Interval 1 year Charge Time 3 hours
Doppler
Doppler Type Bi-directional, Continuous-wave (CW) Audio Bandwidth >4 KHz Waveform Display Digital mean frequency estimator; separate forward and reverse flow waveforms Available Probe Frequencies 8.43 MHz, 5.5 MHz Displayed Waveform Amplitude Accuracy +/–10% Speaker Output > 0.25 W Speaker Type 2 in., 5 W Cable Length 6.5 ft Volume Control Continuously variable with mute
Photoplethysmography (PPG) (Optional on Vista ABI)
Wavelength 940 nm Artifact Rejection Synchronous demodulation, AC-coupled output Operating Frequency 1 KHz Cable Length 6.5 ft.
Pressure
Range 0 – 265 mmHg Accuracy +/-3 mmHg 0 – 200 mmHg, +/–2% above 200mmHg Bleed Rate 2.5 mmHg/sec nominal PVR 0.16 to 12.5 Hz bandwidth, AC-coupled
