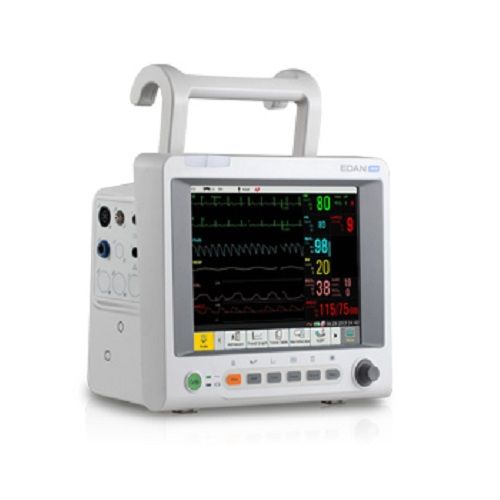

Edan IM60 Patient Monitor

With selectable optional parameters including IBP, cardiac output and capnography, iM60 can adapt to a wide range of sub-acute divisions.

The high resolution color TFT-LCD together with the up-to-date customizable shortcut menu design brings easy one-touch access to frequent used functions, allowing more attentions to the patients.

Employing low-power consumption design, iM60 is with fanless structure which creates no noise and no dust accumulations.

Being embedded with various communication capabilities including HL7, LAN, built-in Wi-Fi, Nurse Call, and Defibrillator Synchronization, iM60 can easily communicate and co-work with hospital information system and other hospital facilities.

Features:

• Large high resolution color touch screen
• No fan design
• Touch & Configure
• Water-proof & dust-proof keypad design
• Pacemaker detection
• Electrosurgical interference proof
• Defibrillation protection and defibrillation synchronization
• Pitch tone
• iSEAPTM ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement
• iMATTM SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance
• iCUFSTM NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients
• Large storage capacity
• Nurse call function
• LAN connection with DHCP support
• Optional built-in Wi-Fi
• Bi-directional communication with the MFM-CMS central station
• HL7 support
• VGA output

Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO2, EDAN NIBP, PR, 2-TEMP

Optional Parameters: Nellcor OxiMaxTM SpO2, 2-IBP, Respironics CO2

What does it come with?

EDAN IM60 Patient Monitor
Skin Temperature Probe
EDAN SH1 Adult Reusable SpO2 Sensor
Adult Cuff (25cm-35cm)
NIBP Tube (3m) with connector
3-lead ECG integrative Cable with Leadwires, Snap (AHA) (Defibrillation)
Power Cord (USA standard)
Adult Disposable Adhesive Electrodes (Nonwovens), Snap(30pcs/pack)
Rechargeable Lithium-Ion Battery (14.8V, 4200mAh)
User Manual
Ground Cable
