Bovie OR PRO 300 W Electrosurgery Generator A3350

Bovie OR PRO 300 W Electrosurgery Generator A3350

View Product
$7,199.00 $7,946.59
In Stock
SKU#: A3350
Details

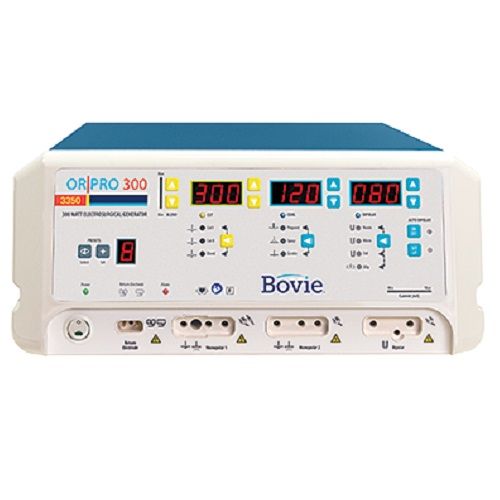

Bovie OR PRO 300 W Electrosurgery Generator A3350

Bovie introduces the OR PRO 300 Electrosurgical Generator. The system was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences.

Package Includes:

  • Bovie OR PRO 300 Electrosurgical Generator
  • 110 VAC Hospital-Grade Power Cord (15ft.)
  • 220 VAC Hospital-Grade Power Cord (15ft.)
  • User’s Guide in CD Format (MC-55-230-001)

Technical Specifications:

  • Audible/Visible Output Meter: Yes
  • Contact Monitoring Systems: BovieNEM™
  • Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Pre-set Feature: Yes
  • Current Meter: Yes
  • Monopolar HP Ports: 2
  • Dual Activation Tone Alert: Yes
  • Connector Ports/Power Switch: White
  • Weight: <9.07 kg (<20 lbs)
  • Dimensions: W – 37.5 cm (14.75 in) H – 16.5 cm (6.5 in) D – 46 cm (18.1 in)
  • Warranty: 4 years, Additional Warranty Available
MONOPOLARWATTSVPEAK MAX VOLTAGECREST FACTOR (TYPICAL)FREQUENCY (KHZ)
Cut I 300 1000V 1.7 ± 20% 490 kHz ± 4.9 kHz
Cut II  300 750V 1.7 ± 20% 490 kHz ± 4.9 kHz
Blend (1) 200 1320V 1.8 ± 20% 490 kHz ± 4.9 kHz
Blend (2) 200 1475V 2.0 ± 20% 490 kHz ± 4.9 kHz
Blend (3) 200 1650V 2.2 ± 20% 490 kHz ± 4.9 kHz
Blend (4) 200 1870V 2.4 ± 20% 490 kHz ± 4.9 kHz
Pinpoint Coagulation 120 1800V 3.1 ± 20% 490 kHz ± 4.9 kHz
Spray Coagulation 120 4000V 6.0 ± 20% 350 to 450 kHz
Gentle Coagulation 120 450V 1.6 ± 20% 490 kHz ± 4.9 kHz
BIPOLARWATTSVPEAK MAX VOLTAGECREST FACTOR (TYPICAL)FREQUENCY (KHZ)
Macro Bipolar 150 600V 1.5 ± 20% 490 kHz ± 4.9 kHz
Micro Bipolar 80 450V 1.5 ± 20% 490 kHz ± 4.9 kHz
Standard Bipolar 50 300V 1.5 ± 20% 490 kHz ± 4.9 kHz
Bovie Bipolar 225 250V 1.5 ± 20% 490 kHz ± 4.9 kHz
Auto Bipolar 80     490 kHz ± 4.9 kHz
More Information
Warranty 4 Year Manufacturers Warranty
