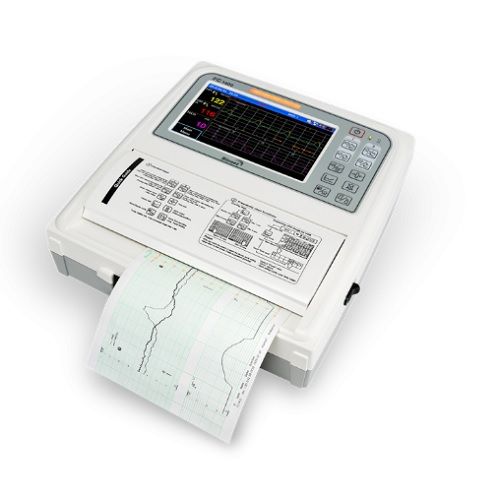

Bionet FC1400 Twinview Fetal Monitor

The FC 1400 is an antepartum fetal monitor which detects and displays twin fetus heart rate and uterine activity in real time on the 7” color touch screen LCD monitor. Touch interface along with 10 smart keys for 16 functions make the operation easier and faster. Built-in printer provides easy-to-read B4 size printout for charting. Onboard memory allows you to review and print up to 72 hours of internally stored data. USB flash drive interface provides a simple way to move the test result to PC for EMR attachment. LAN and WiFi interface make it easy to adapt to wired and wireless networking environments. Automatic fetal movement detection and TOCO zeroing reduce the intervention of the users. CTG (Cardiotocography) interpretation provides the silent recommendation for NST (Non-Stress Test). The FC 1400 provides accurate and continuous obstetric measurements in the most rigorous clinical environments with a 3-year warranty.

Features

Superior Data Display and Touch Interface
7” wide color LCD viewer (800×480 resolution)
Touch screen operation along with 10 smart keys for 16 functions
Graphic and text display mode
Yellow/green LED alarm lamp for easier recognition
72-hour trace data reviewer

Extreme Data Accuracy and Smart Function
Twin fetus heart rate and uterine activity
More compact probes and robust connectors
Automatic fetal movement detection
Automatic TOCO zeroing
Clinical mark and note entering
CTG interpretation

Printout
Easy-to-read B4 size chart paper with folding line
High-speed printout of stored data
Paper feeding for short handwriting memo

Enhanced Data Management
72 hours of memory capacity
USB flash drive storage for exporting JPG file to EMR

Specifications:

What does it come with?

• FC 1400 Main Unit
• US Probe (x2)
• TOCO Probe
• Event Marker Jack
• Ultrasound Gel
• Probe Belt (x3)
• Paper (x2)
• Power Adaptor & Hospital Grade Power Cord
• Operation Manual
• 3-Year Warranty Card.
