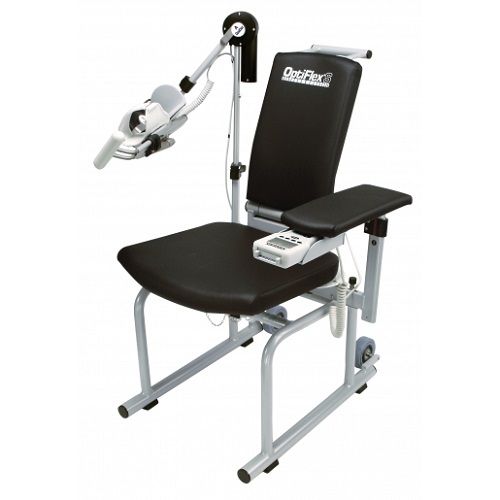

Chattanooga OptiFlex S Shoulder CPM Unit - Patient Kit Sold Separately 2029

OptiFlex S Shoulder CPM. Designed to provide anatomical motion for the shoulder with enhanced patient comfort, compliance and more beneficial outcomes. Addresses full range of motion capabilities.

Features:

• Easy-to-use hand control for storing treatment data on memory chip card
• Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols
• Ergonomic rest for healthy arm and fully adjustable chair
• Patented Universal left/right Shoulder design
• Folds easily for transport/shipping
• Includes patient data card and erasable pen
• Lightweight design weighs 55 lbs (25 kg)
• Two-year limited warranty

Technical Specifications:

• Motor Control: On/Off
• Pause: 0 - 30 seconds
• Speed: 0 - 100%
• Timer: 1 - 300 minutes
• Warm-Up Mode: 50% of programmed ROM
• Synchronization: On/Off
• Reverse-On-Load: 1 - 20
• Therapy Run Time: h : m
• Patient Data Storage: n/a
• Adduction/Abduction: 0 - 30 - 175°
• Internal/External Rotation: 90 - 0 - 90°
• Flexion/Extension: 0 - 30 - 175°
• Horizontal Adduction/Abduction: 0 - 0 - 125°
• Unit Weight: 55 lb (25 kg)
• Shipping Weight 107 lb (48.5 kg)
• Dimensions: 34.4" x 22.6" x 22.8" (87.5 cm x 57.5 cm x 58 cm)
• Transport Size: 14.6" x 22.6" x 22.8" (37 cm x 57.5 cm x 58 cm)
• Safety Tests: CSA - 601-1-M90, UL - 2601-1
